Aquaja Diamond Line 535
- Dimensions: 130 x 55 x 55 cm
- Glass thickness: 12 mm
- Volume: ca. 395 liter
- Dimensions: 105 x 40 x 40 cm
- Glass thickness: 6 mm
- Filter bags: Double (2x)
- Volume: ca. 140 liter
- R.O. storage: ca. 24 liter (included in sump dimensions)
- Dimensions: 134 x 55 x 85 cm
- 2 Soft-close doors
Aquaja Diamond Line 535

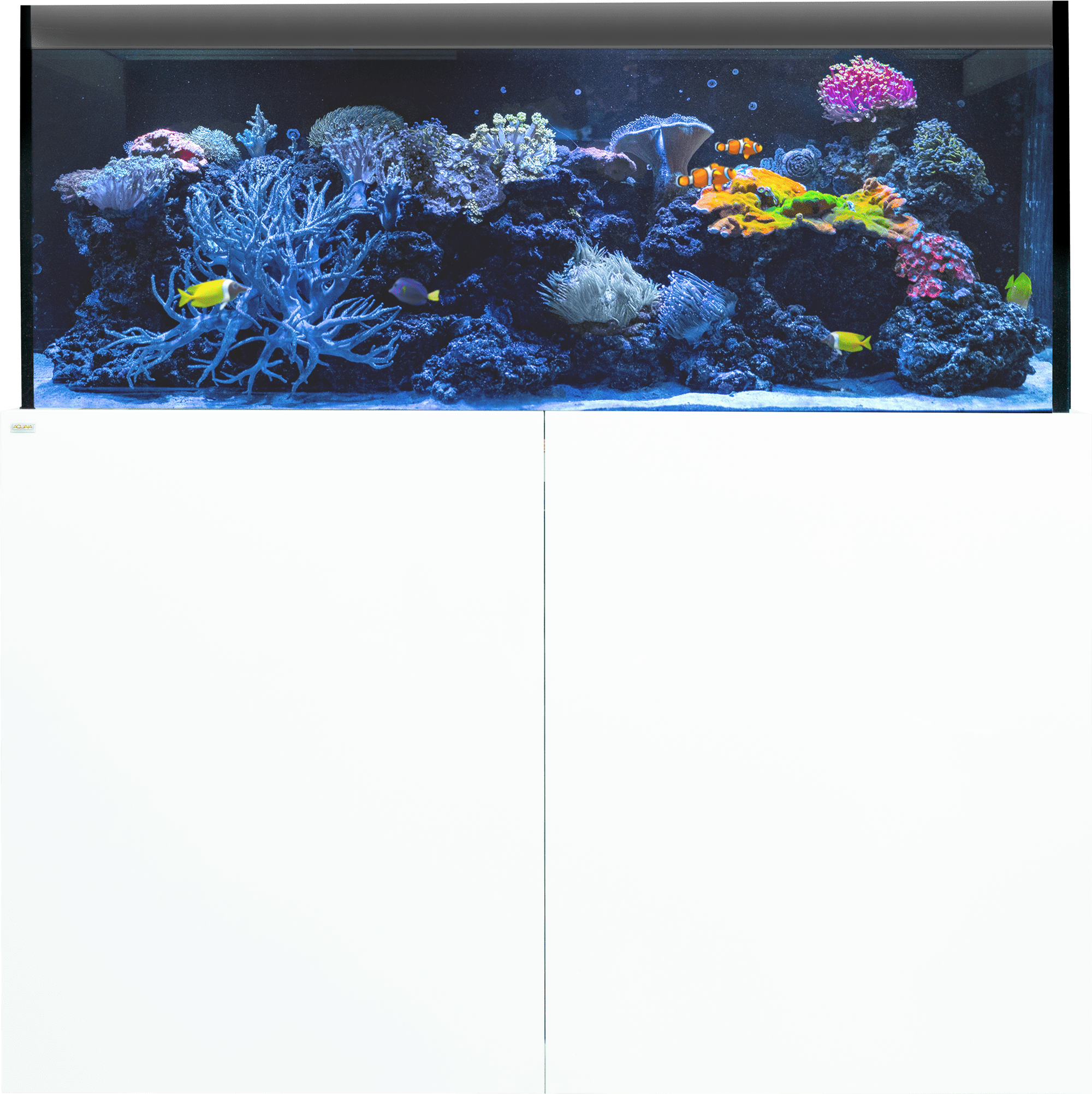

The Aquaja Diamond Line 535 has a volume of around 395 liter. The aquarium, with dimensions 130x55x55 cm, has ultra-clear glass (front & sides).
Each aquarium is equipped with a black glass overflow box with removable combs and a covering plate. The aquarium has 2 turnable water outlets. Inside the overflow box you can find a double drainage system; the PVC50 main drainage (with the integrated PVC20 return pipe) and a PVC50 emergency drainage (with the integrated 2nd PVC20 return pipe).
The main drainage has a precision gate valve which contrails the flow through the drainage. This can be adjusted very accurately.
Inside the furniture you will find our design sump. The sump has a special white finish. The sump has a removable filter bag holder with 2 filter bags.
The design aquarium comes with a fully pre-assembled furniture with 2 soft-closing doors.
This aquarium is also available in black.
Overflow with 2 outlets
The Aquaja Diamond Line 535 has a black glass overflow box with removable combs and a covering plate. The aquarium has 2 turnable water outlets.
This gives the aquarium a very neat design and it provides you with the possibility to arrange the flow of the water in an accurate manner.
Inside the furniture you will find our design sump. The sump has a special white finish (sides and back with lacobel white glass, front with white vinyl). This sump, with dimensions 105x40x40 cm, is equipped with 2 filter bags. The return piping of the 535 model is split into 2 PVC20 return pipes.
The PVC piping comes fully pre-assembled with no gluing required.
All you need to do is connect the plumbing inside the aquarium and connect your pump to the return pipe with the flexible hose.
The Aquaja Diamond Line aquariums are a series of high-quality rimless aquariums with ultra-clear glass and an overflow box out of black glass. The furniture is a fully pre-assembled aluminum frame with high-quality Perfect Gloss MDF-panels and is including a white design sump.
Optional lighting hood
With each Aquaja Diamond Line model you have the possibility to order an optional lighting hood, to allow you to work with a closed system as well.
The lighting hoods are made with a glass inside-frame and are furnished with high-quality c-bond panels. The lighting hood has 2 holes on the backside and is equipped with removable covering plates (with ventilation rosters).
- Dimensions: 134 x 55 x 15 cm
Do note: this product is optional. If you would like this, please select it when ordering an aquarium.
DL+ Silent 5500 Pump
We have designed the DL Silent pumps for the Aquaja Diamond Line. The DL Silent pumps are high-quality pumps from the Aquaja brand. The DL+ Silent 5500 l/h is the ideal multifunctional pump for the Aquaja Diamond Line 535, where the flow can be regulated with the rotatable protective grid.
Do note: this product is optional. If you would like this, please select it when ordering an aquarium
